Generator set data sheet
BIM Object
- Engine Specifications 1.500 r.p.m.
- Rated Engine Output: 54kW prp ; 54kW standby
- Manufacturer: FPT_IVECO
- Model: F34.TEVP01
- Engine Type: 4-stroke diesel
- Injection Type: Direct, common rail
- Aspiration Type: Turbocharged and after-cooled
- Number of cylinders and arrangement: 4-L
- Bore and Stroke: 99 x 110 mm
- Displacement: 3,4 L
- Cooling System: Liquid (water + 50% glycol)
- Lube Oil Specifications: ACEA E6, ACEA E9, API CJ-4
- Compression Ratio: 17;1
- Fuel Consumption ESP: 13,9 l/h
- Fuel Consumption 100% PRP: 13,9 l/h
- Fuel Consumption 80 % PRP: 11,1 l/h
- Fuel Consumption 50 % PRP: 7,2 l/h
- Fuel Consumption 25 % PRP: 4,2 l/h
- Lube oil consumption with full load: 0,25
- Total oil capacity including tubes, filters 9,5 L
- Total coolant capacity: 14,6 L
- Governor Type Electrical
- Air Filter Type Dry
- Diesel engine
- 4-stroke cycle
- Water-cooled
- 12V electrical system
- Dry air filter
- Radiator with pusher fan
- HTW sender
- Electronic governor
- Hot parts protection
- Moving parts protection
- Radiator water level sensor (Optional)
- LOP sender (Optional)
- Generator: STAMFORD
- Model: UCI224E
- Poles: 4
- Connection type (standard): Star-series
- Mounting type: S-3 11"1/2
- Insulation: H class
- Enclosure (according IEC-34-5): IP23
- Exciter system: Self-excited, brushless
- Voltage regulator: A.V.R. (Electronic)
- Bracket type: Single bearing
- Coupling system: Flexible disc
- Coating type: Standard (Vacuum impregnation)

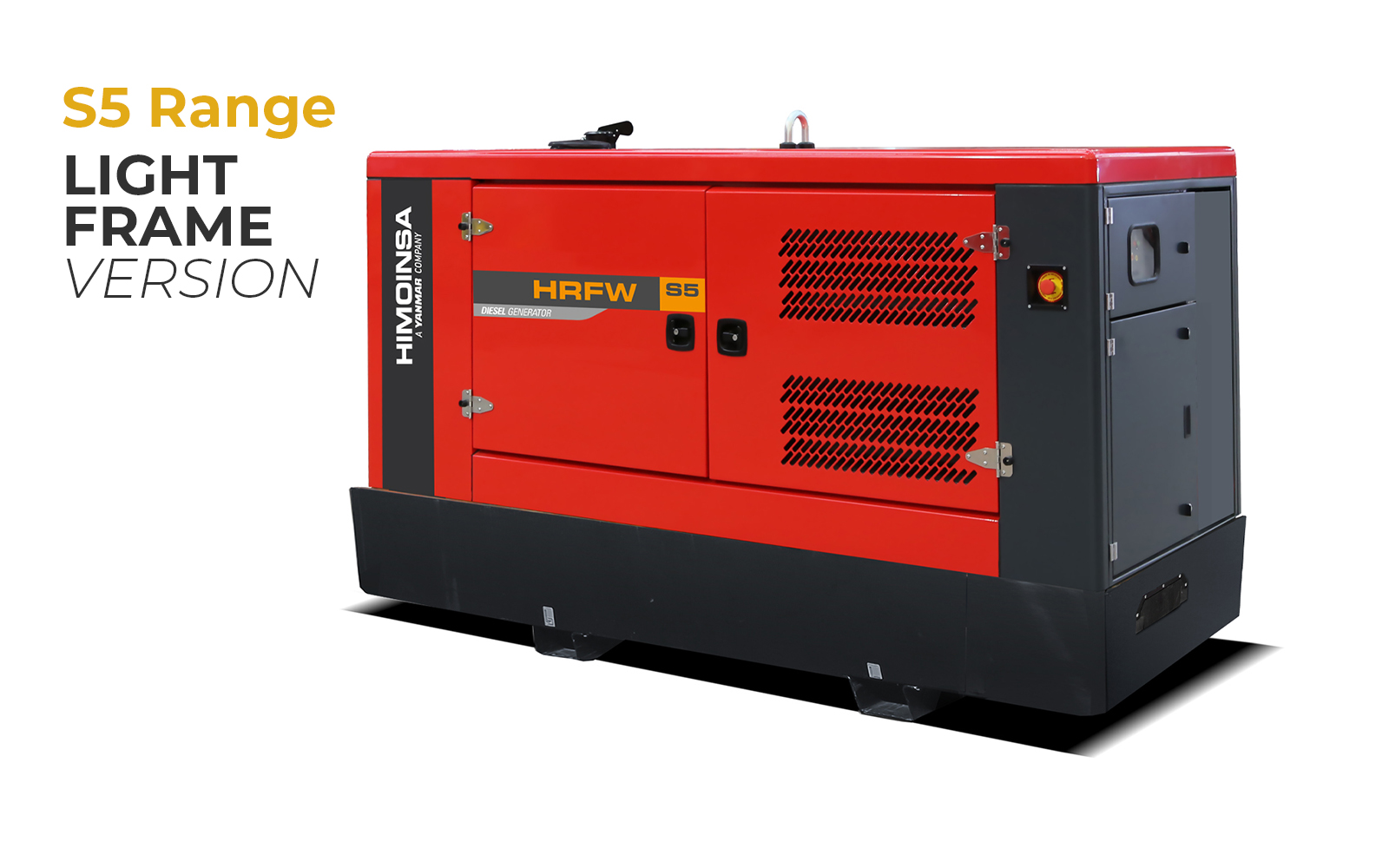

- - SOUNDPROOFED VERSION.
- Steel chassis
- Anti-leakage chassis, predisposed to retain liquids (retention tray)
- Manhole for fuel tank cleaning and drainage
- Tilting cap in the exhaust
- Manhole to fill the radiator
- Pre-installation or niche to house the quick connection hydraulic fittings for fuel transfer
- Anti-vibration shock absorbers
- Chassis with integrated fuel tank
- Fuel level gauge
- Bodywork made from high quality steel plate
- High mechanical strength
- Low noise emissions level
- Soundproofing provided by high-density volcanic rock wool
- Epoxy polyester powder coating
- Full access for maintenance (water, oil and filters, no need to remove the canopy)
- Oil sump extraction kit
- External filling of the fuel tank with safety key
- Emergency stop button (double emergency stop protection: Interior on the panel + Exterior on the bodywork)
- Mechanized for power cable output
- Door with window to visualize control panel, alarms and measurements
- Pressure locks
- IP Protection according to ISO 8528-13:2016
- - ELECTRICAL SYSTEM.
- M5 control panel with electronic CEM7 control unit and switched emergency stop
- Power panel with built-in circuit breaker plates
- Safety relay in output terminal board (thermal magnetic trip and alarm in control unit)
- M12 control panel with electronic DSE 7310 control unit and switched emergency stop
- Socket boxs IP67
- Adjustable earth leakage protection (time & sensitivity) standard in M12, with thermal magnetic protection
- Socket boxes with 2x16A (2Ph), 1x16A (3Ph), 1x32A (3Ph) y 1x63A (3Ph)
- Adjustable earth leakage protection (time & sensitivity) standard in M5 and AS5, with thermal magnetic protection
- Battery charger alternator with ground connection
- Starter battery/ies installed (cables and bracket included)
- Ground connection electrical installation with connection ready for ground spike (not supplied)
- Battery Switch (Optional)
- - EXHAUST SYSTEM.
- Maximum exhaust temperature: 760 ºC
- Maximum allowed back pressure: 220 mbar
- Exhaust Flange Size (external diameter): 90 mm
- - NECESSARY AMOUNT OF AIR.
- Intake air flow: 193,3 m3/h
- Cooling Air Flow: 1 m3/s
- Alternator fan air flow: 0,216 m3/s
- - STARTING SYSTEM.
- Starting power: 4,2 kW
- Starting power: 5,71 CV
- Auxiliary Voltage: 12 Vdc
- - FUEL SYSTEM
- Fuel Oil Specifications: Diesel
- Fuel Tank: 216 L
- Other fuel tank capacities: 450 L
- - DIMENSIONS.
- Length: 2.660 mm
- Height: 1.600 mm
- Width: 1.110 mm
- Maximum shipping volume: 4,72 m3
- Weight with liquids in radiator and sump: 1.690 kg
- Fuel tank capacity: 216 L
- Autonomy: 19 Hours
- Sound pressure level: 62 ± 2,4 dB(A)@7m
Length (A)266104.72
Width (B)11143.70
Height (C)16062.99
Weight with fluids in radiator and crankcase
1690
3726.45
Length (A)266104.72
Width (B)11143.70
Height (C)17769.69
Weight with fluids in radiator and crankcase
1823,00
4019.715
